Descriere

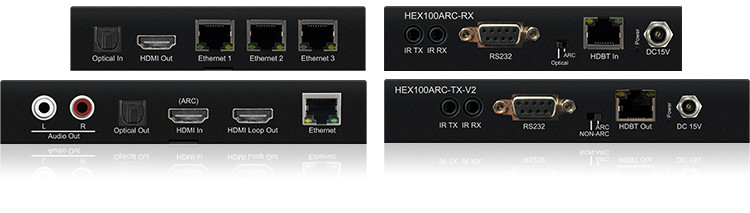

- kit format din transmitator HEX100ARC-TX-V2 si receptor HEX100ARC-RX-V2
- distributie video si audio folosind tehnologia avansata HDBaseT
- distanta: 70m @ 4K (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0), 100m @ 1080p
- suporta 3D
- suporta CEC (Consumer Electronics Control)
- port HDMI loop-out (transmitator HEX100ARC-TX-V2) pentru display local sau cascadare
- suporta ARC (Audio Return Channel) via HDMI sau intrarea optica; returnarea semnalului audio se face catre HDMI, optic sau RCA
- suporta toate rezolutiile video standard inclusiv VGA-WUXGA and 480i-4K
- suporta Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio
- switch LAN cu 3 porturi integrat
- IR si RS232 bidirectional cu pass through
- contine emitator si receptor IR
- alimentare PoH (Power over HDBaseT) bidirectional
- compatibil HDCP 2.2

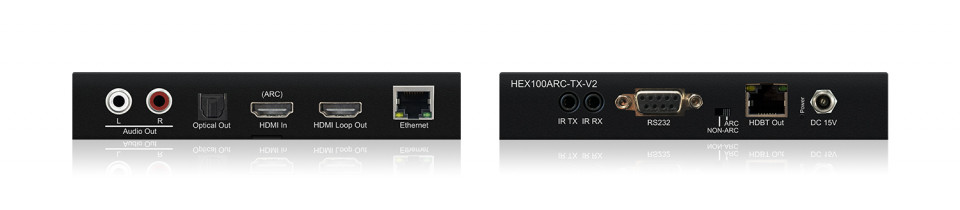

Transmitator HEX100ARC-TX-V2:
- video in: 1 x HDMI
- video out: 1 x HDBaseT, 1 x HDMI
- audio out: 2 x RCA stereo, 1 x optic (SPDIF)
- Ethernet: 1 x RJ45
- RS232: 1 x DB9
- IR in: 1 x jack 3.5mm
- IR out: 1 x jack 3.5mm

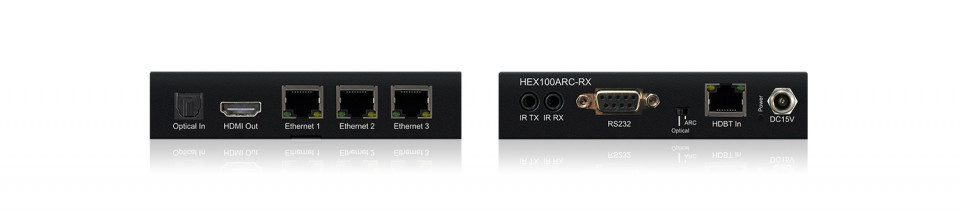

Receptor HEX100ARC-RX-V2:
- video in: 1 x HDBaseT
- video out: 1 x HDMI
- audio in: 1 x optic (SPDIF)
- Ethernet: 3 x RJ45
- RS232: 1 x DB9
- IR in: 1 x jack 3.5mm
- IR out: 1 x jack 3.5mm
