BLUSTREAM HEX100HDVGA-KIT Kit extender HDBaseT (HDMI/VGA, 100m @ 1080p, 70m @4K), IR, RS232, PoH
Descriere
- kit format din transmitator HEX100HDVGA-TX si receptor HEX100HDVGA-RX
- distributie video si audio folosind tehnologia avansata HDBaseT
- schimbare automata sursa intre HDMI si VGA - ultima conectata va fi afisata
- schimbare manuala a sursei prin buton sau RS232
- distanta: 70m @ 4K (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0), 100m @ 1080p
- suporta 3D
- suporta CEC (Consumer Electronics Control) pe intrarea HDMI
- suporta toate rezolutiile video standard 480i-4K si majoritatea rezolutiilor VGA
- suporta Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio
- IR si RS232 bidirectional cu pass through
- contine emitator si receptor IR
- alimentare PoH (Power over HDBaseT) bidirectional
- compatibil HDCP 1.4

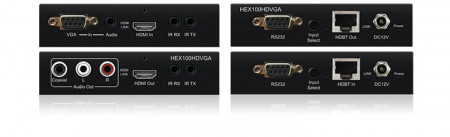

Transmitator HEX100HDVGA-TX:
- video in: 1 x HDMI, 1 x VGA
- video out: 1 x HDBaseT
- audio in: 1 x jack 3.5mm stereo
- RS232: 1 x DB9
- IR in: 1 x jack 3.5mm
- IR out: 1 x jack 3.5mm
Receptor HEX100HDVGA-RX:
- video in: 1 x HDBaseT
- video out: 1 x HDMI
- RS232: 1 x DB9
- IR in: 1 x jack 3.5mm
- IR out: 1 x jack 3.5mm
