Descriere

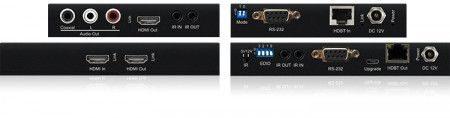

- kit format din transmitator HEX100CS-TX si receptor HEX100CS-RX
- distributie video si audio folosind tehnologia avansata HDBaseT
- suporta HDMI 2.0 18Gbps inclusiv HDR - tehnologie Colour Space Conversion (CSC)
- functie down scaling ale rezolutiilor de intrare video (pana la 4K 60Hz 4:4:4) la 1080p 60Hz (pentru display-uri care nu suporta 4K) respectiv 4K 60Hz 4:2:0 (pentru display-uri care nu suporta full 4K 60Hz 4:4:4)
- distanta: 40m @ 4K (60Hz 4:4:4 UHD), 70m @ 1080p
- port HDMI loop-out (transmitator HEX100CS-TX) pentru display local sau cascadare
- suporta toate rezolutiile video standard inclusiv VGA-WUXGA and 480i-4K
- suporta Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X
- receptorul are functie HDMI re-clocking pentru a rezolva probleme de compatibilitate HDMI HDCP
- audio de-embedder cu porturi analog stereo si digital coaxial simultane
- IR si RS232 bidirectional cu pass through
- contine emitator si receptor IR
- alimentare PoH (Power over HDBaseT) bidirectional
- management EDID avansat
- compatibil HDCP 2.2

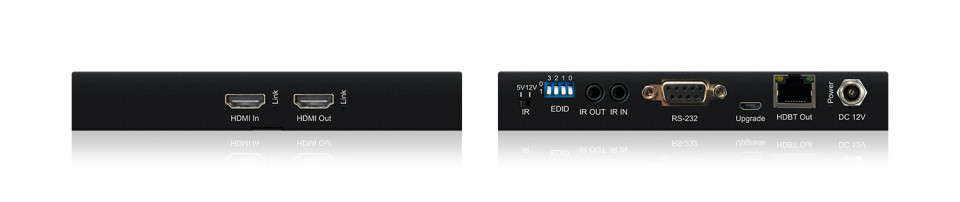

Transmitator HEX70CS-TX:
- video in: 1 x HDMI
- video out: 1 x HDBaseT, 1 x HDMI
- RS232: 1 x DB9
- IR in: 1 x jack 3.5mm
- IR out: 1 x jack 3.5mm

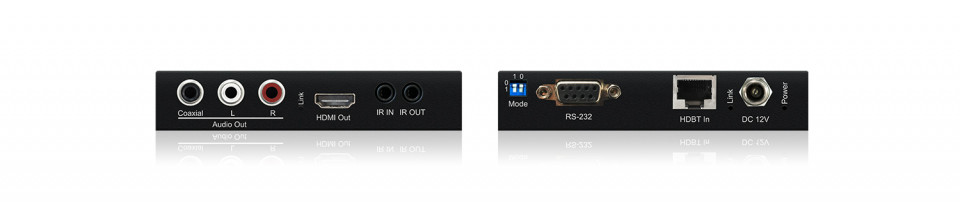

Receptor HEX70CS-RX:
- video in: 1 x HDBaseT
- video out: 1 x HDMI
- RS232: 1 x DB9
- IR in: 1 x jack 3.5mm
- IR out: 1 x jack 3.5mm
- audio out: 1 x RCA (SPDIF), 1 x RCA analog stereo
