Descriere
- transmite semnal video UHD in retele 1Gb
- teoretic, sistemul poate avea dimensiuni nelimitate
- extender HDMI pe Cat 6: 100 m
- scaler video
- rezolutie iesire: maxim 4K 30Hz UHD
- suporta Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- management avansat al semnalului cu routare independenta (IR, RS232, USB/KVM)
- alimentare PoE sau 220V (optional)
- compatibil HDCP 2.2 cu management EDID avansat
- de-embedder audio (L/R)
- LAN loop-out
- 4 moduri de operare: matrice, videowall, point-to-point, point-to-many

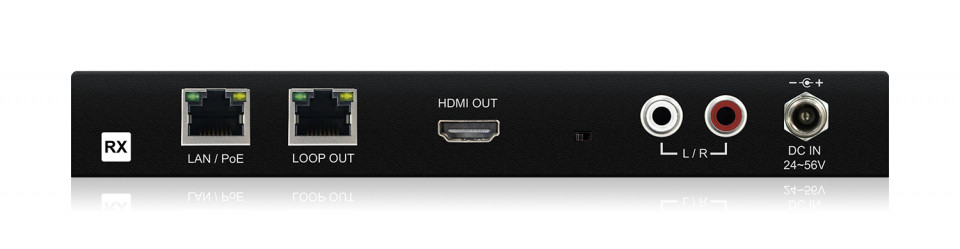

- intrari video: 1 x LAN (RJ45)
- iesiri video: 1 x HDMI
- iesiri audio: 1 x RCA stereo
- port Ethernet: 1 x LAN RJ45 (extensie semnal video)

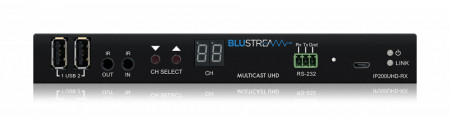

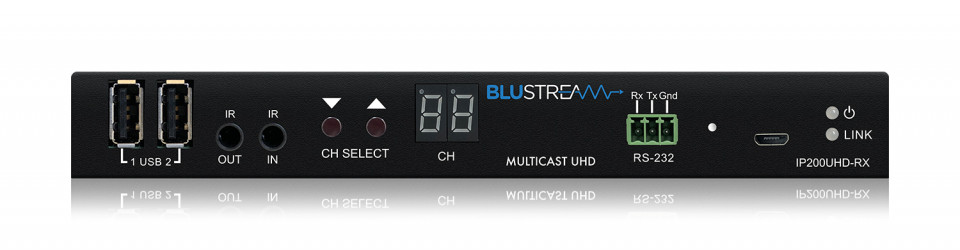

- port RS232: euroblock 3 pini
- port KVM: 2 x USB
- IR: 1 x IN (jack 3.5mm), 1 x OUT (jack 3.5mm)
