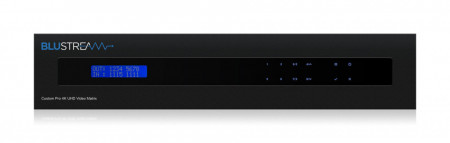

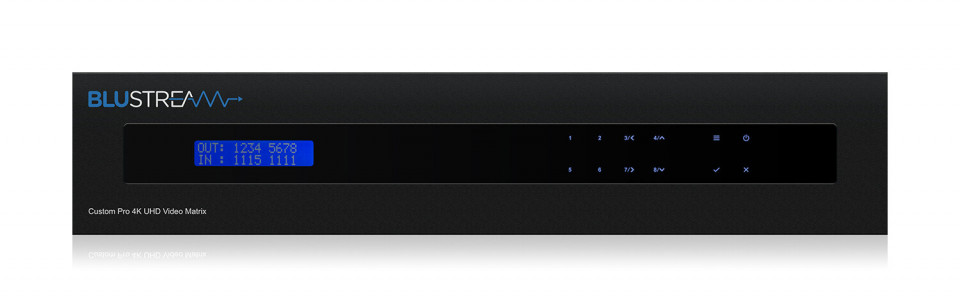

BLUSTREAM PRO88HBT70 Matrice video HDBaseT 8x8

Descriere

- distributie video si audio folosind tehnologia avansata HDBaseT

- 8 x HDMI in care pot fi rutate independent catre 8 x HDBaseT si 8 x HDMI out simultane

- distanta: 40m @ 4K (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0), 70m @ 1080p

- suporta toate rezolutiile video standard inclusiv VGA-WUXGA and 480i-4K

- suporta Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio

- 8 x audio out simultane (coaxiala digital si analog stereo)

- interfata web pentru configurarea si controlul matricei

- suporta IR si RS232 bidirectional

- contine emitatori si receptori IR

- control de pe panoul frontal, IR, RS232 sau TCP/IP

- alimentare PoH (power over HDBaseT) pentru receptoare

- drivere pentru pricipalele sisteme de control

- management EDID avansat

- compatibil HDCP 2.2

- kit de montaj in rack 2U inclus

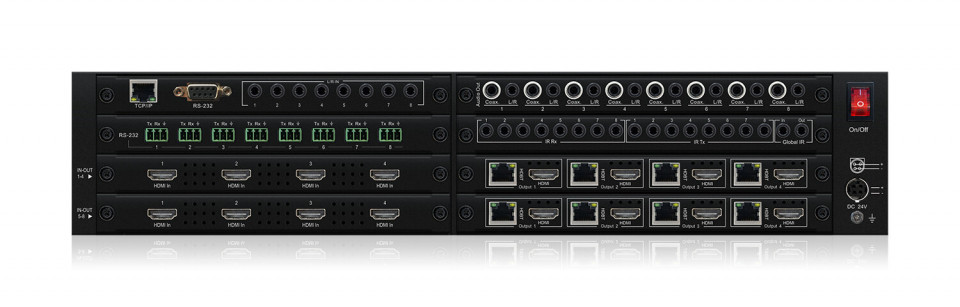

- video in: 8 x HDMI

- video out: 8 x HDBaseT RJ45, 8 x HDMI

- audio in: 8 x jack 3.5mm stereo

- audio out: 8 x RCA (SPDIF), 8 x jack 3.5mm stereo

- RS232: 1 x DB9, 8 x euroblock 3 pini

- TCP/IP: 1 x RJ45

- Ethernet: 1 x RJ45

- IR in: 9 x jack 3.5mm

- IR out: 9 x jack 3.5mm
