Descriere

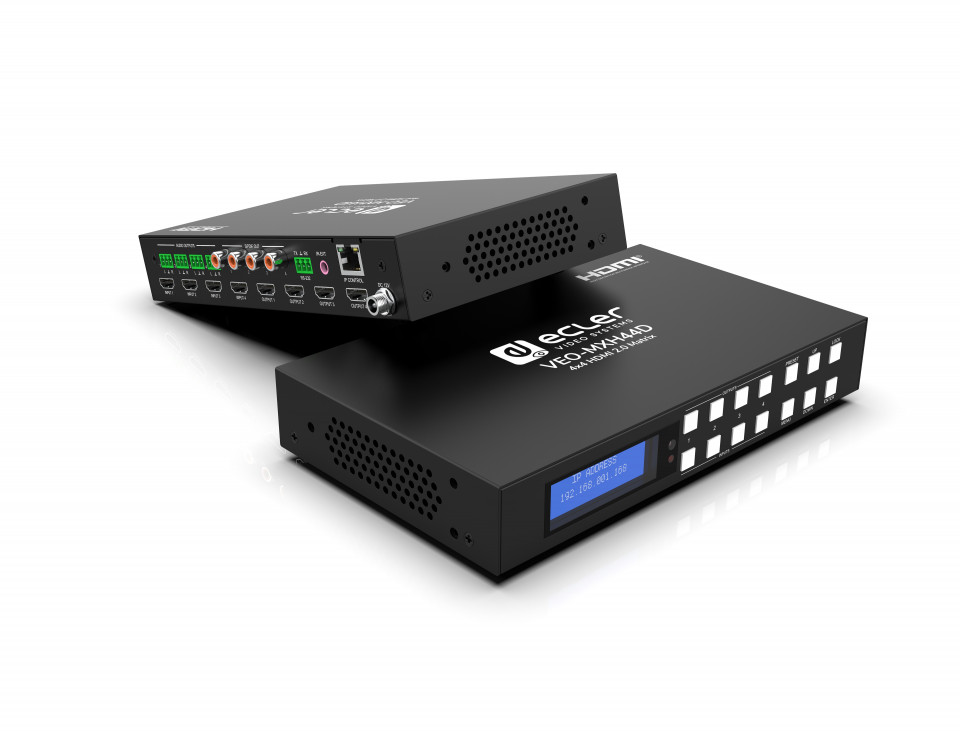

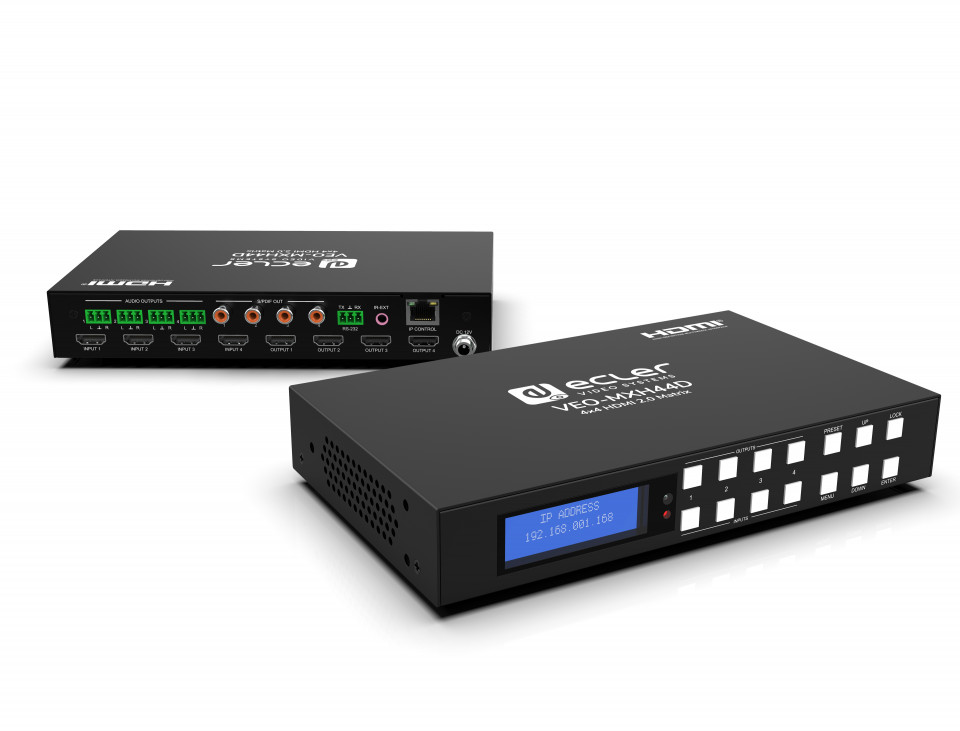

Matrice video HDMI 4x4 pentru formate HDRcu extractoare audio si display
- compatibil HDCP 2.2 si 1.4
- suporta video 4K @60Hz, YUV 4:4:4 8-bit, HDR (at 4K @60Hz YUV 4:2:0 10-bit) si semnale HDMI 18 Gbps
- full HD video downscaling
- extractoare audio
- 8 preset-uri

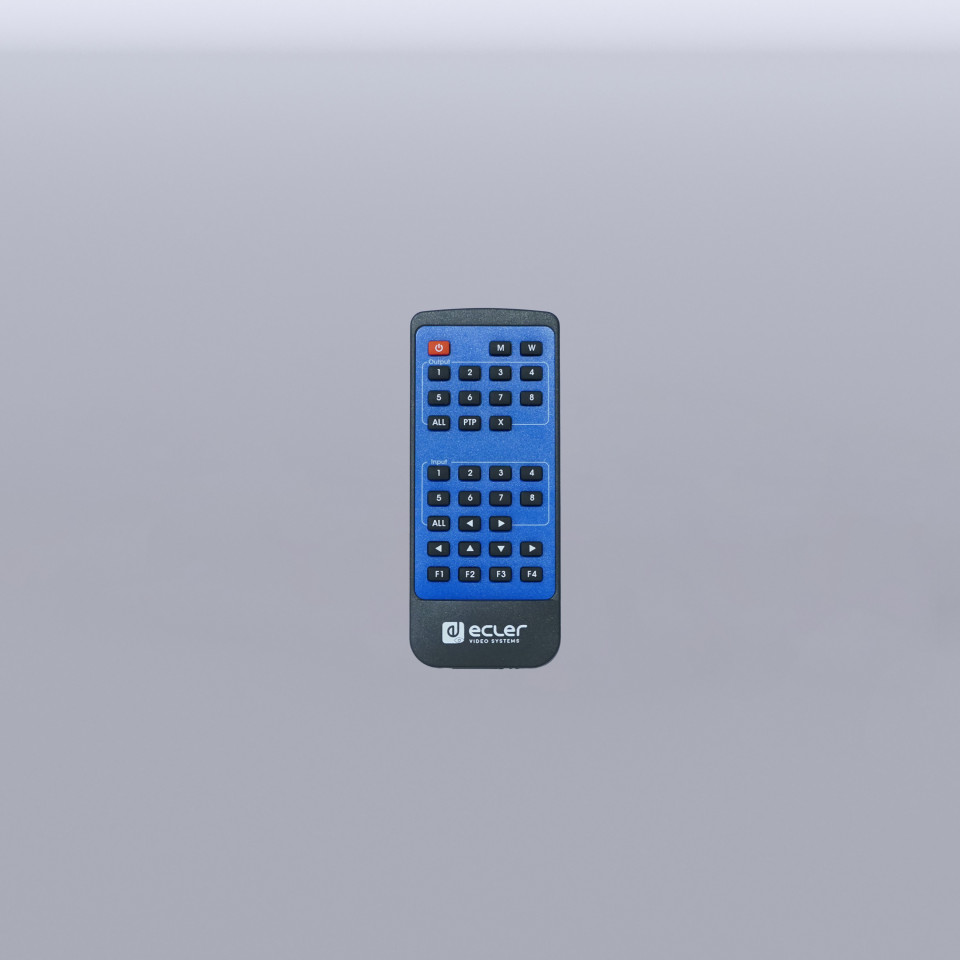

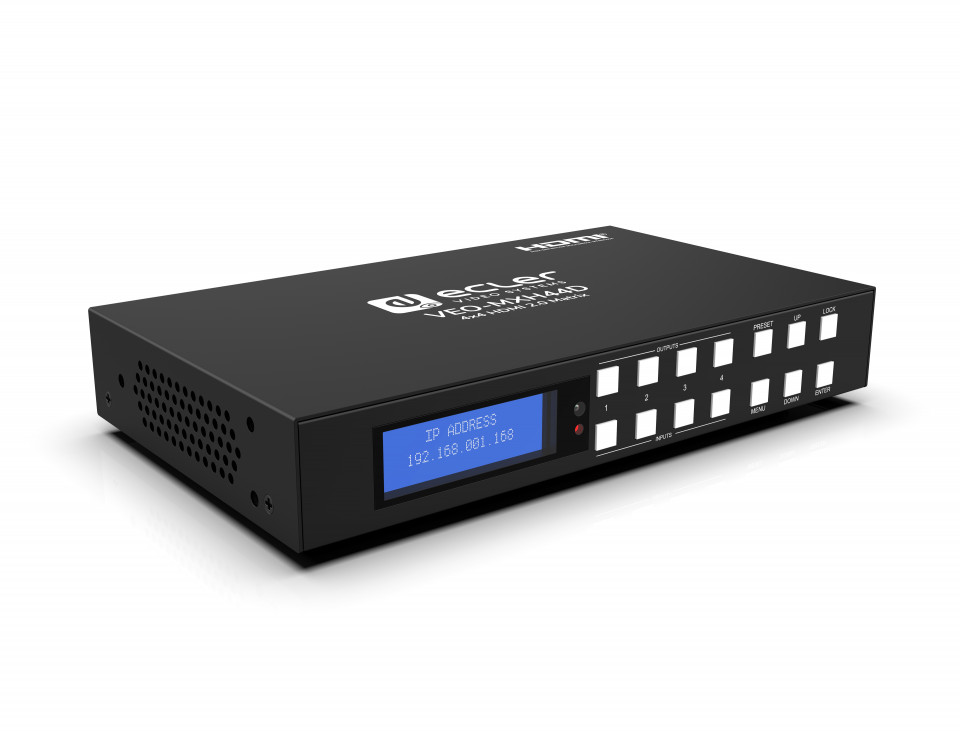

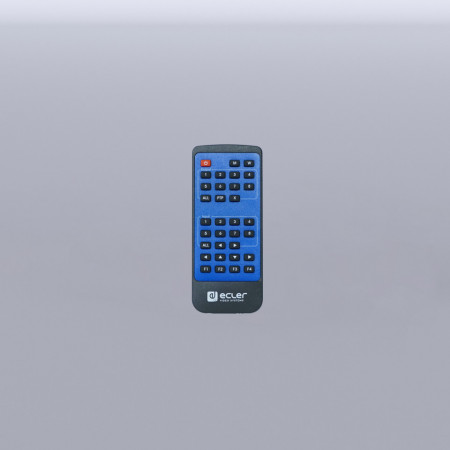

- control de pe panoul frontal, IR, RS-232, IP si interfata web
- suporta continut HDR
- EDID management
- formate audio suportate: PCM2.0, PCM5.1, PCM7.1, Dolby Digital, DTS 5.1, Dolby Digital+ Dolby True HD, DTS-HD master audio, Dolby Atmos, DTS-X

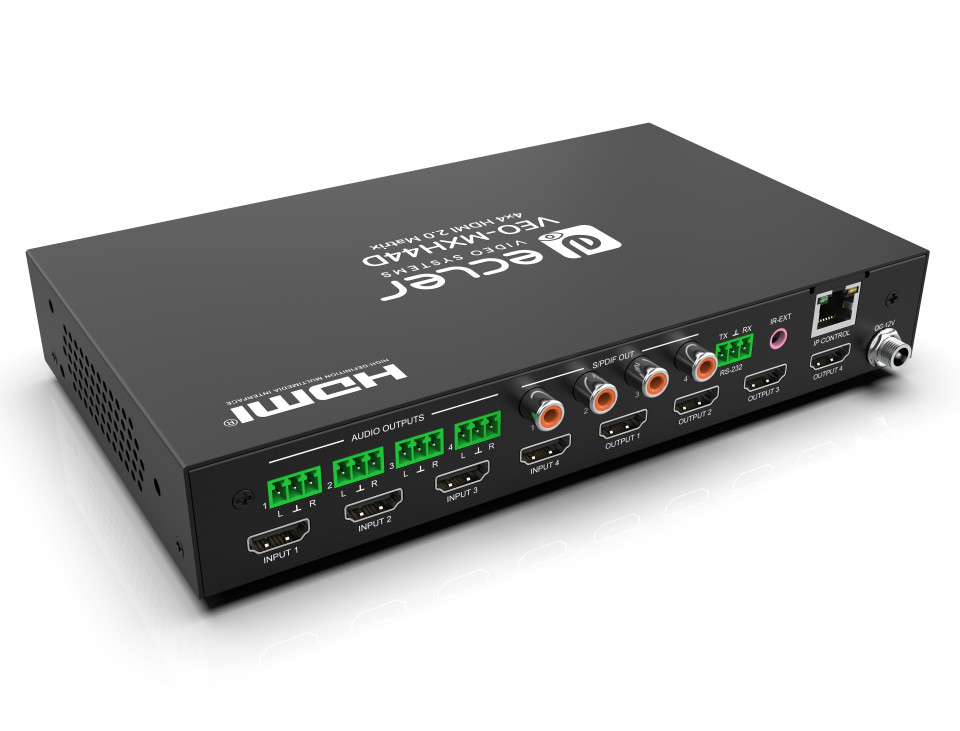

- intrari video: 4 x HDMI tip A (mama)
- iesiri video: 4 x HDMI tip A (mama)
- iesiri audio: 4 x euroblock (stereo nebalansat), 4 x S/PDIF (stereo)
- rezolutii suportate intrari: 480p@60hz, 576p@50hz, 720p@60hz, 1080p@24hz, 1080p@50hz, 1080p@60hz, 4K@24hz, 4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4
- rezolutii suportate iesiri: 480p@60hz, 576p@50hz, 720p@60hz, 1080p@24hz, 1080p@50hz, 1080p@60hz, 4K@24hz, 4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4
- control: 1 x IR (minijack 3.5mm), 1 x euroblock (RS232), 1 x RJ45 (Ethernet)
- alimentare: 100-240VAC 50-60Hz (12VDC-2A)
- dimensiuni: 217.4 x 35 x 128.7 mm
- greutate: 470 g
