ECLER VEO-MXH48T Matrice video HDMI HDBaseT 8x8 4K
Descriere
Matrice video cu 8 intrari HDMI ce pot fi routate independent catre 8 iesiri HDMI si 8 iesiri HDBaseT
- compatibil HDCP 2.2 si 1.4
- suporta video 4K @60Hz, YUV 4:4:4 8-bit, HDR (at 4K @60Hz YUV 4:2:0 10-bit) si semnale HDMI 18 Gbps
- extensie semnal video: 4K@60Hz 4:4:4 8 bit 4K - maxim 40m; Full HD - maxim 70m
- downscaling independent de la 4K@60Hz 4:4:4 la: Full HD@60Hz (pentru monitoarele ce nu suporta 4K) / 4K60Hz 4:2:0 (pentru monitoarele ce nu suporta 4K@60Hz 4:4:4)
- matrice audio independenta: 8 intrari si 16 porturi de extractie audio analog si digitale
- 8 preset-uri

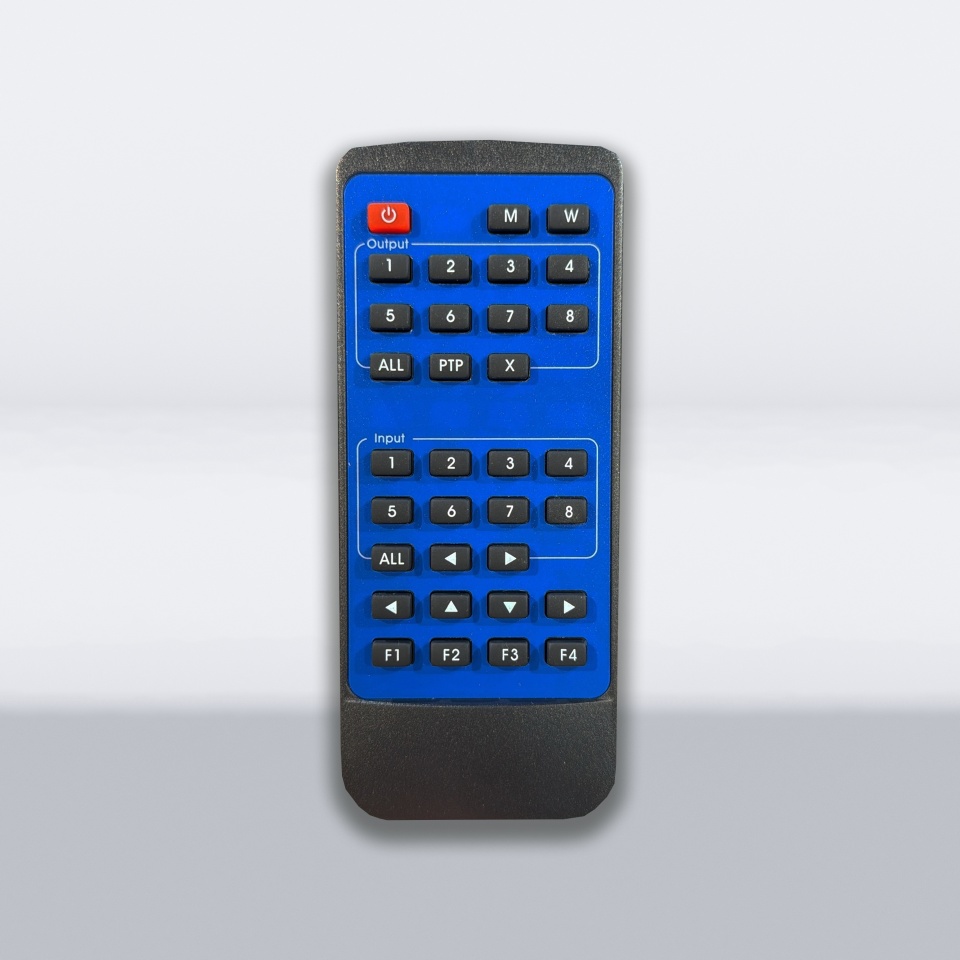

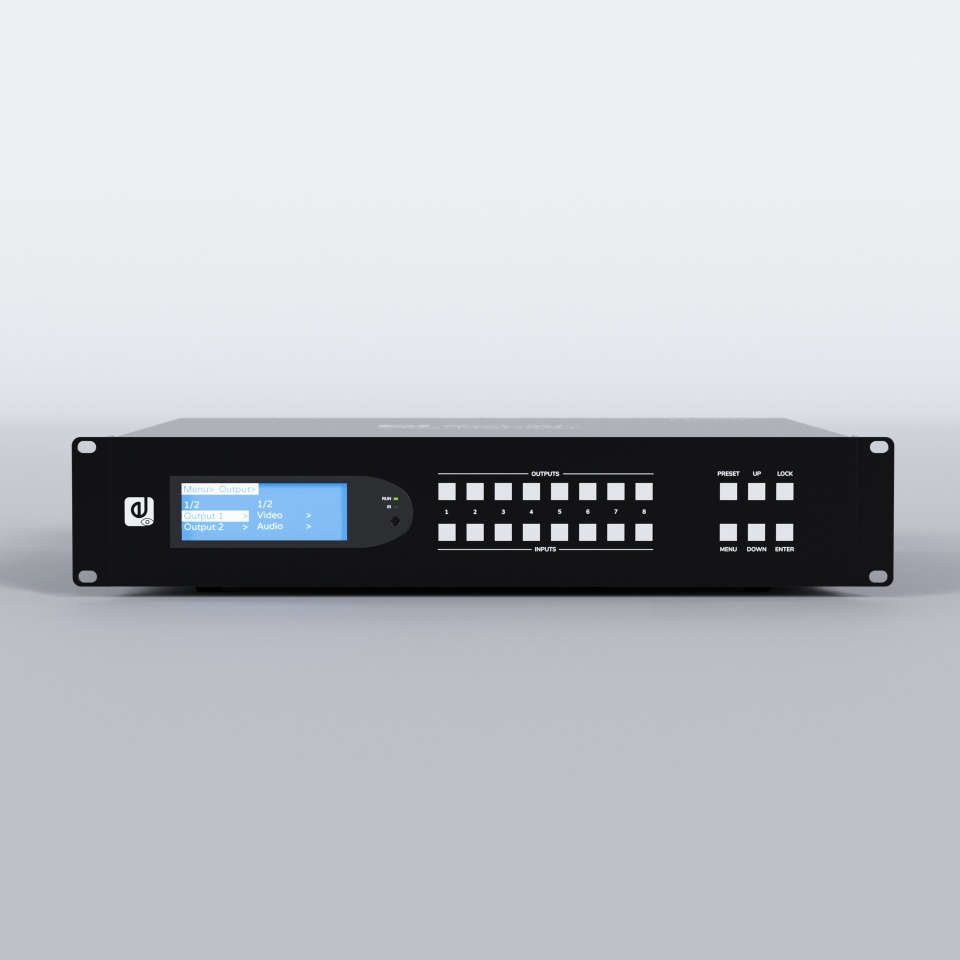

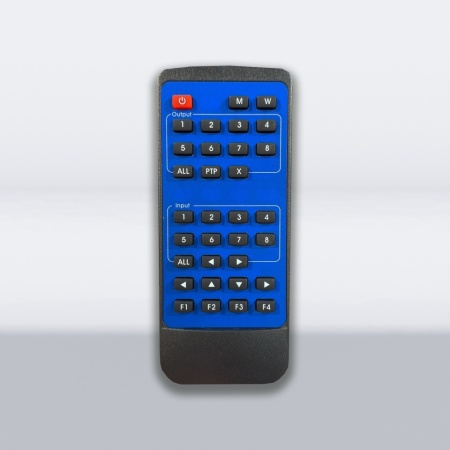

- control de pe panoul frontal (butoane si display), IR, RS-232, IP si interfata web
- CEC
- ARC
- suporta continut HDR
- EDID management
- formate audio suportate: Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X

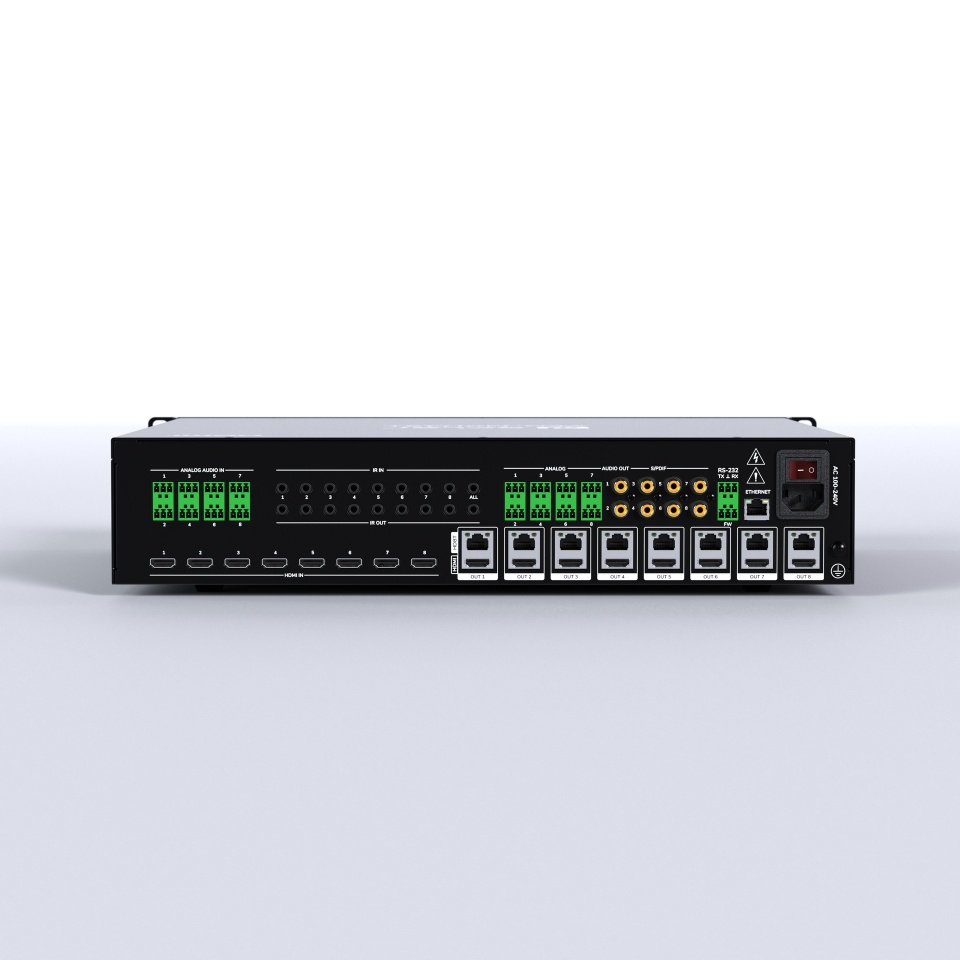

- intrari video: 8 x HDMI tip A (mama)
- iesiri video: 8 x HDMI tip A (mama), 8 x HDBaseT (RJ45)
- intrari audio: 8 x euroblock (stereo nebalansat)
- iesiri audio: 8 x euroblock (stereo nebalansat), 8 x S/PDIF (stereo)
- rezolutii suportate intrari: pana la 3840x2160/60 YUV444 HDMI
- rezolutii suportate iesiri: 3840x2160/60 YUV444 HDMI
- conectori control: 1 x IR (minijack 3.5mm), 1 x euroblock (RS232), 1 x RJ45 (Ethernet)
- alimentare: PoC; Input 90-264 VAC @ 47-63Hz, Output 1 x 100-240 V AC @ 50-60Hz
- dimensiuni: 482.6 x 88 x 394 mm
- greutate: 8.3 kg
