Descriere
Controller DMX
- Alimentare: 230V
- Canale: 192
- Iesire DMX512: XLR 3 pini
- Control audio: microfon integrat sau RCA
- Dimensiuni: 450 x 210 x 100 mm
- Greutate: 4.2 kg

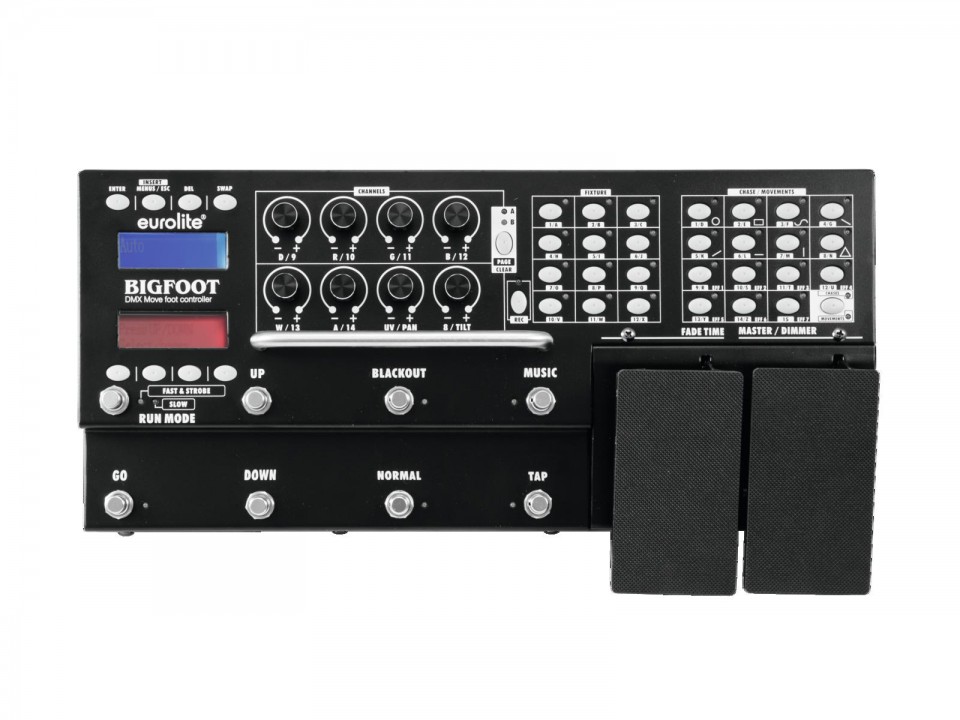

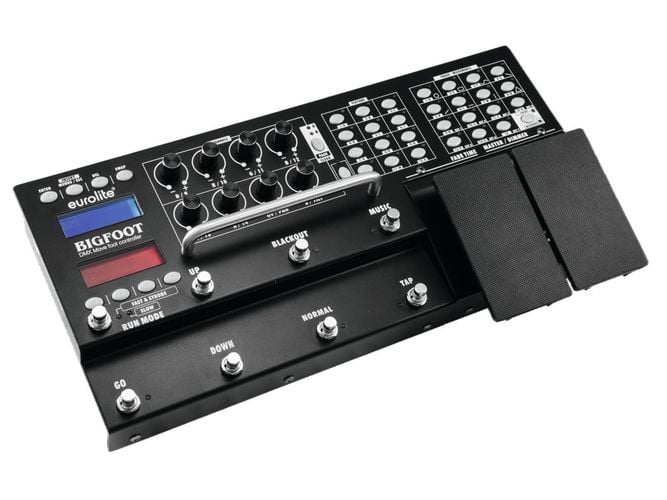

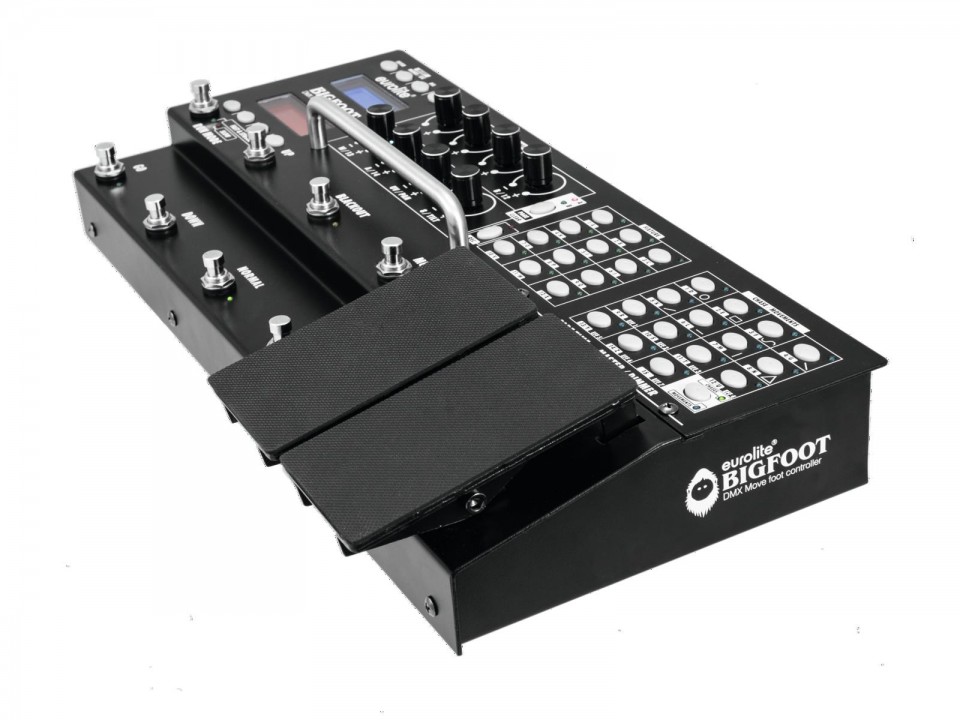

Fully programmable DMX foot controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
192 DMX channels can be assigned and inverted as desired to 16 control channels (softpatch)
For 12 fixtures with max. 16 control channels each
USB port for storing program data
Quick programming thanks to the integrated FX generator with movement patterns and color effects
Several effects can be used simultaneously
15 programmable chases with a total of 100 steps can be stored
Programs can be freely named
Simply preselect the desired program and trigger it with GO
Beat control via music signal or TAP button
Convenient control of dimmer, fade time and other functions by foot
8 encoders on 2 levels for adjusting DMX values
Blackout function
2 x backlit LCD (2 x 16 characters each)
Sound control via built-in microphone or line input
RDM support (DMX address setup and identify)

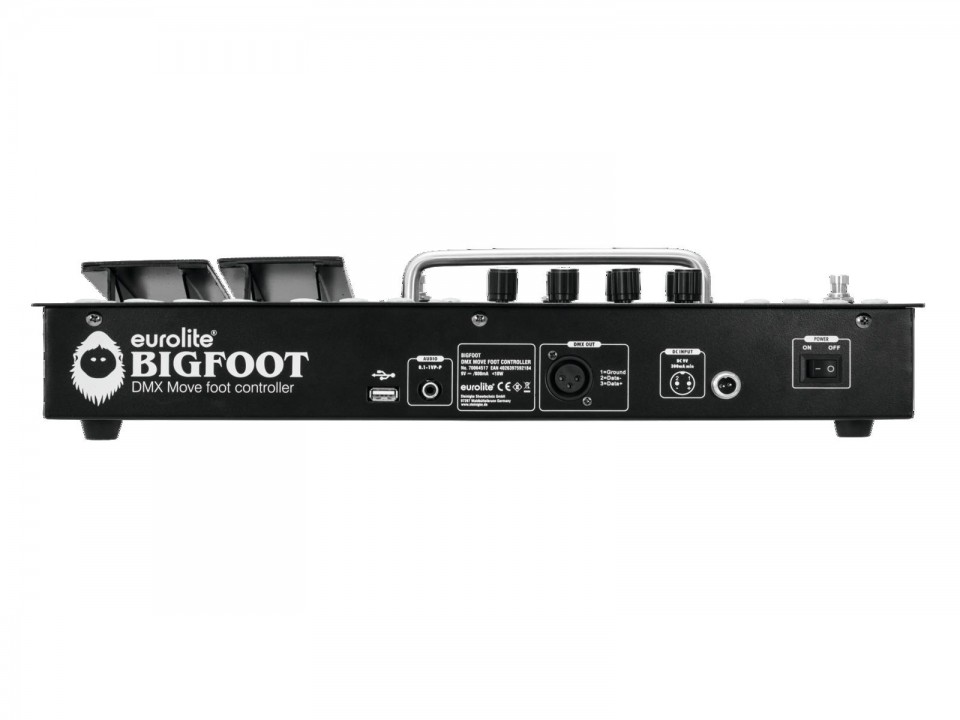

3-pin XLR connector
Firmware update via USB
Solid metal housing with handle
- Garantie: 24 luni
