Descriere

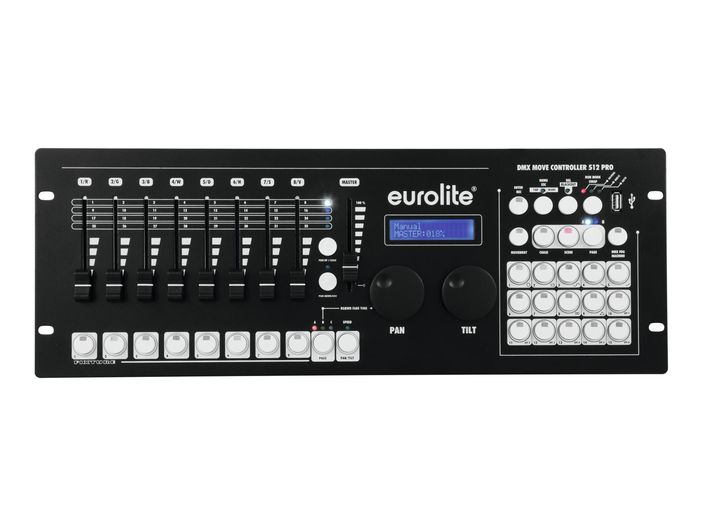

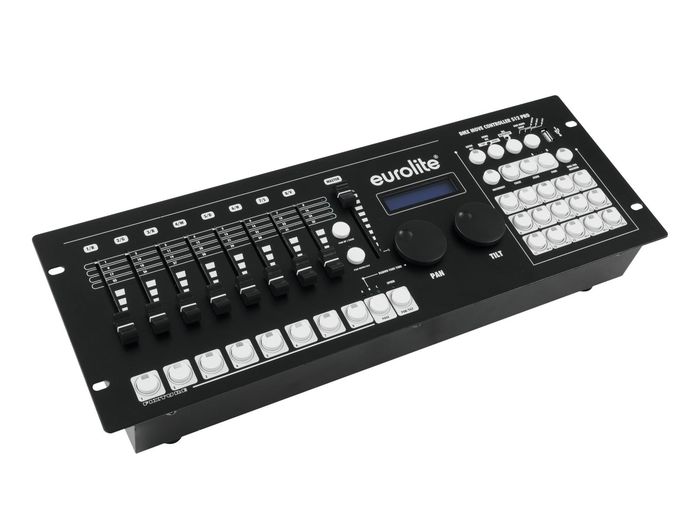

Controller DMX
- Alimentare: 230V
- Canale: 512
- Iesire DMX512: XLR 3 pini
- Dimensiuni: 483 x 170 x 107 mm
- Rackabil, 3U
- Greutate: 3.9 kg
DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
512 DMX channels can be assigned and inverted as desired to 34 control channels (softpatch)
For 24 fixtures with max. 34 control channels each
USB port for storing program data
Quick programming thanks to 9 integrated movement patterns and 6 color effects (pan/tilt position, fade time and running time adjustable)
Several movement patterns and color effects can be used simultaneously
30 programmable chases with 100 scenes each can be stored
Manual, time-controlled or sound-controlled chase running mode
30 programmable scenes
3 DMX fixture levels can be controlled
8 motorized DMX channel faders for user-friendly control
The motor faders provide a precise overview of the parameters when switching the individual banks, chases and scenes

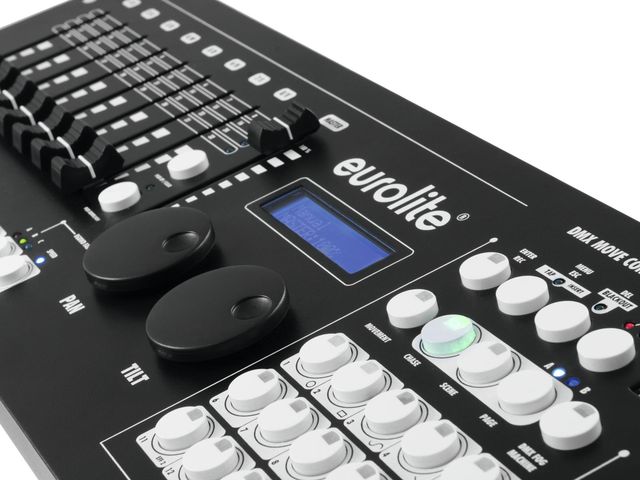

2 jog wheels for pan/tilt
Master fader for color and dimmer channels
Blackout function
Color-illuminated buttons provide easy orientation
Sound control via built-in microphone
Backlit LCD (2 x 16 characters)
RDM support (DMX address setup and identify)

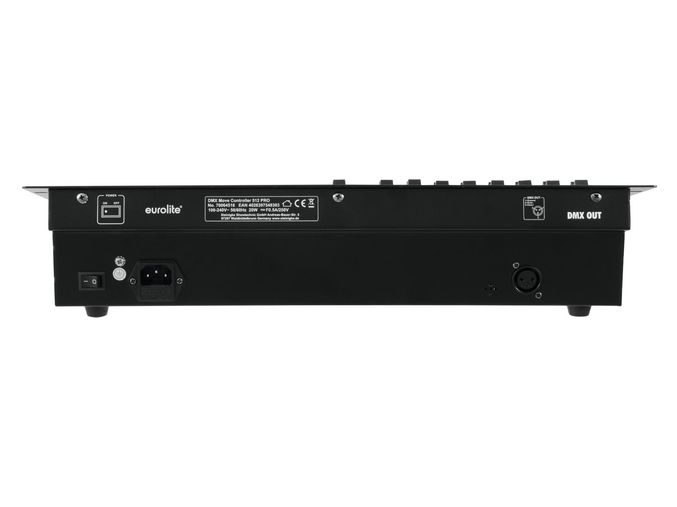

3-pin XLR connector
Firmware update via USB
Desktop console
Rack installation with 3 units
- Garantie: 24 luni
