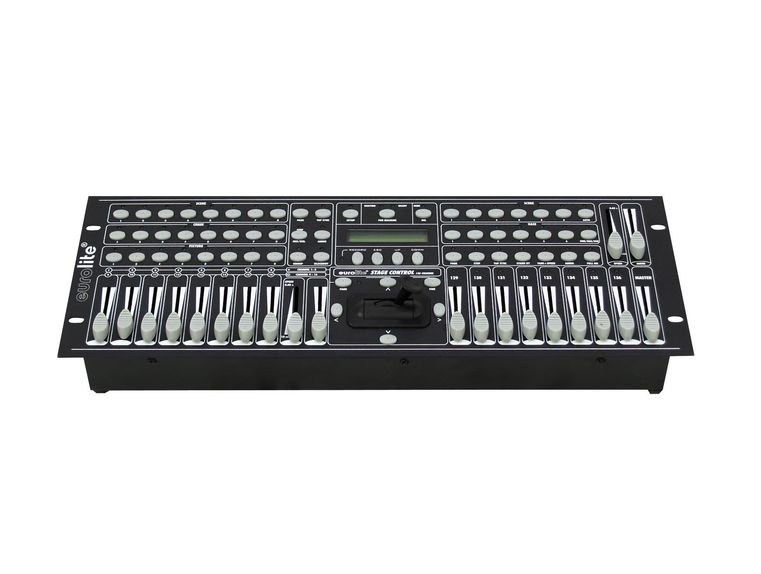

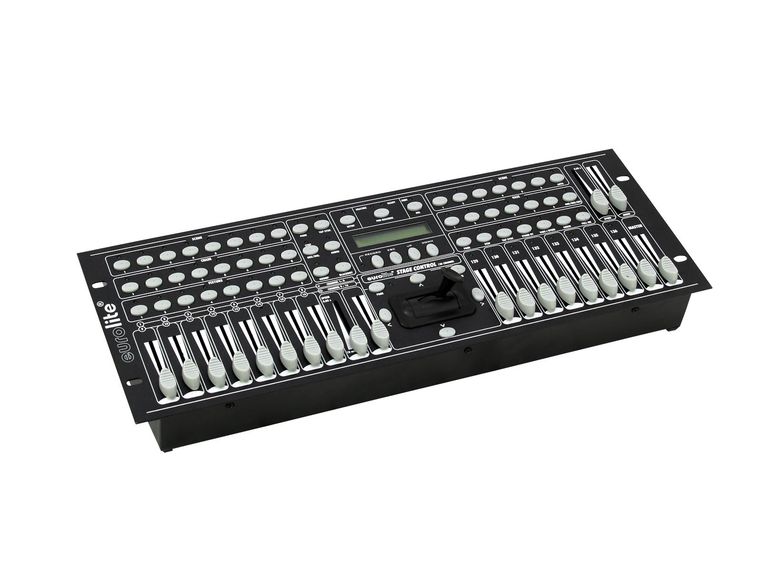

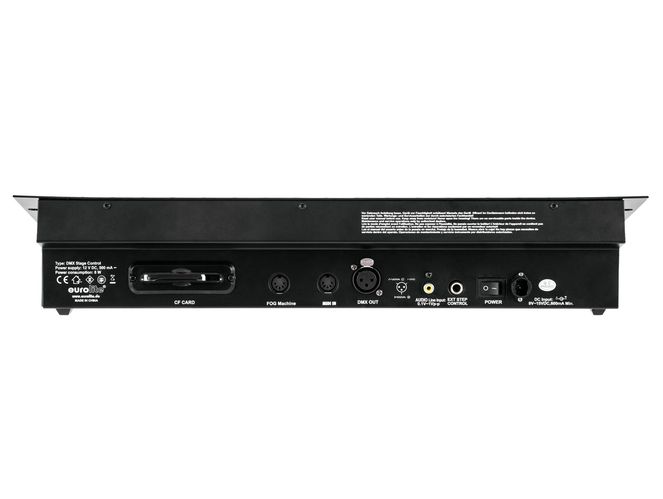

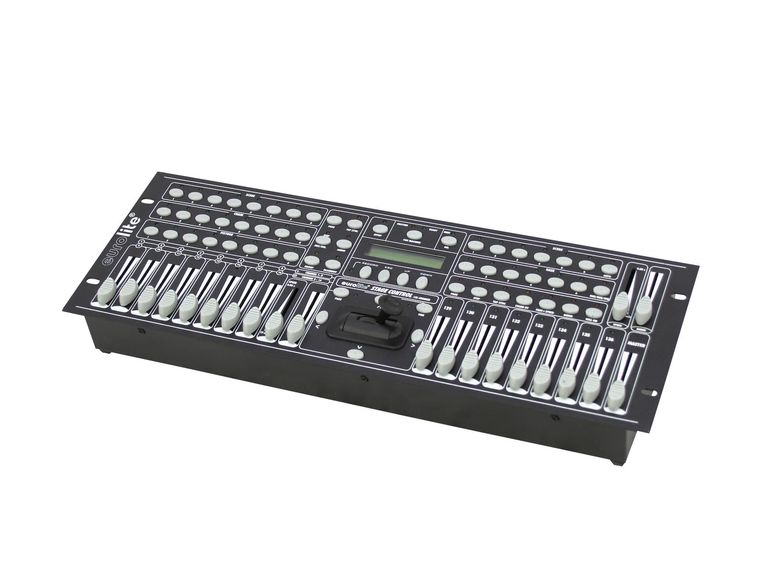

EUROLITE DMX Stage Control 136 controller

Descriere

Controller DMX
- Alimentare: 230V
- Canale: 136
- Control audio: microfon integrat sau jack
- Iesire DMX512: XLR 3 pini
- Dimensiuni: 483 x 180 x 93 mm
- Rackabil, 4U
- Greutate: 3 kg

136 control channels DMX out and MIDI in
8 channel-faders with LED
Fade Time fader with LED for adjusting the step time
Master-fader with LED for adjusting the total output level
Speed-fader for adjusting the program-speed
Audio-fader with LED for adjusting the music sensitivity
CF memory card for programs
LCD display
External power supply
6.3 mm jack connection for footswitch (scene steps)
0/10 V-output via one 5-pin DIN-socket for fog machine
Simultaneous and independent control of scanner and parcan section
Dimmer: Manual control of the channels via sliders
Full On: all channels can be switched on together
Blackout-function
Program speed adjustable via speed-fader or Tap Sync-button
Sound-control via external signal or integrated microphone
Sound to light via RCA socket
Rack mounting plates included
Rack installation with 4 units
128 control channels for 8 scanners with up to 16 DMX channels
12 pages with up to 8 scenes can be programmed
8 chasers each with up to 99 steps
Programmable speed and fade time
Patch possibility
Joystick with fine mode and 4 step buttons
8 dim fader channels and 1 master fader
12 pages with up to 6 scenes can be programmed
6 chasers each with 99 steps
Speed, tap-sync und audio fader
Step function
Standby and full-on

- Garantie: 24 luni
