Descriere
- Alimentare: 240V
- Consum: 490W
- DMX Control: 14/16/22
- Conector DMX 512: XLR 3 si 5 pini
- Control prin sunet: microfon integrat
- Max. PAN: 630°
- Max. TILT: 270°
- Dimensiuni: 385 x 329 x 486 mm
- Greutate: 21.5 kg
Double lamp lifetime with half power input and smaller dimensions compared to a 700 W lamp
With integrated wireless receiver for WDMX operation (Wireless Solution - made in Sweden)
Supports RDM (Remote Device Management)
Very narrow illumination angle
Light beam is centered and moved exactly
Color-wheel with 6 different, dichroic color filters and white and additionally with CTO correction filter and UV filter
Switchable color change (mode 1: only full colors, mode 2: color-change at every position)
14, 16 or 22 DMX channels selectable
Rainbow effect with adjustable speed in both directions
Gobo-wheel with 13 static metal gobos plus open
Gobo-wheel with 8 rotating gobos plus open
Slot-in gobo-system for exchanging gobos without tools
With gobo-shake function
Rotating 3-facet prism
Macro-function for rotating gobos/rotating prism combinations
Motorized focus
Strobe effect with 1-13 flashes per second
Random strobe effect
Frost-filter
Mechanic dimmer
Exact positioning via 16 bit resolution: color-wheel, gobo indexing, prism indexing, focus, dimmer and PAN/TILT movement
Automatic position correction
Switch-mode power supply
Automatic power supply adaption between 100 and 240 Volts without power selector
ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc.
Control board with graphic LCD display and touch keyboard for adjusting the DMX-starting address, PAN/TILT reverse, program, reset, lamp on/off, operating hours
PAN-angle switchable between 630° and 540°
DMX-controlled operation or stand-alone operation with master/slave function
7 built-in programs can be called up via DMX-controller
56 preprogrammed scenes in Program Run for stand alone operation
Number of scenes in Program Run can be changed individually
The scenes in Program Run can be modified via the Control Board or via an external controller and loaded into the memory
Software upload by optional accessory via DMX link
Sound-controlled via built-in microphone
With PHILIPS MSD Platinum 15R discharge lamp

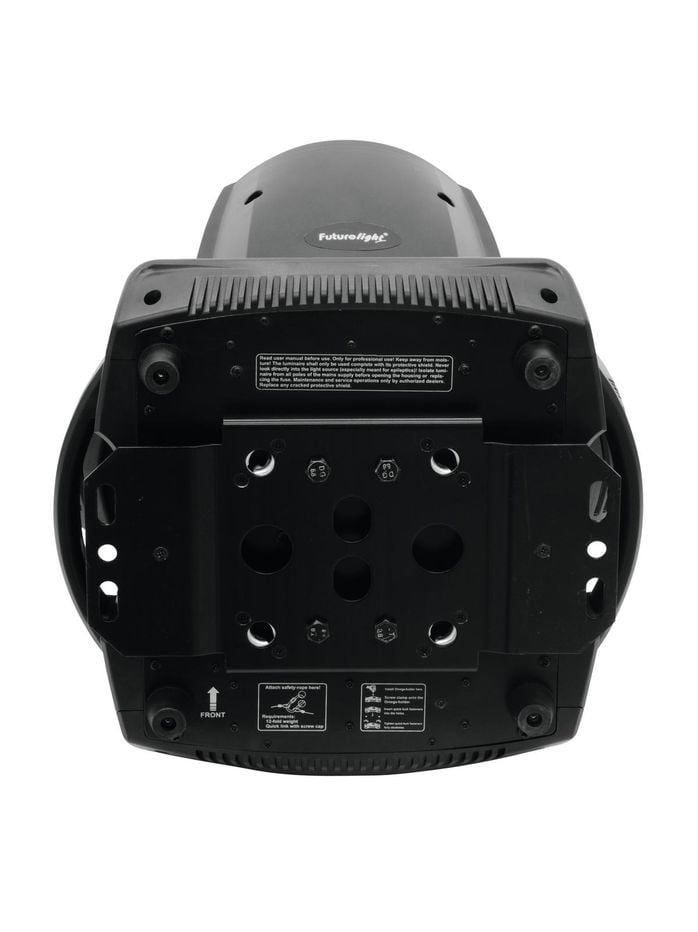

The integral mounting plate on the bottom of the device enables a permanent installation even without omega clamps, e.g. on the ceiling

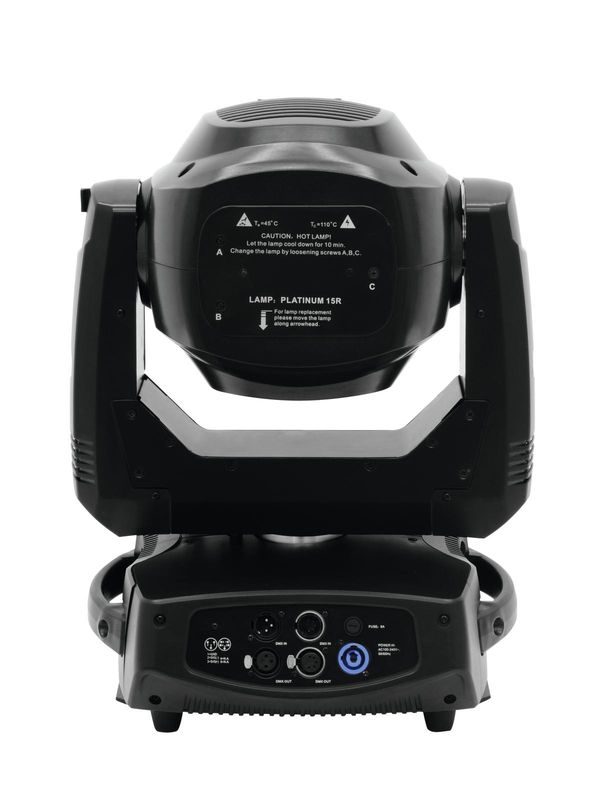

Power connection via Neutrik PowerCon jack and included power cable
DMX-control via every standard DMX-controller
- Garantie: 24 luni
