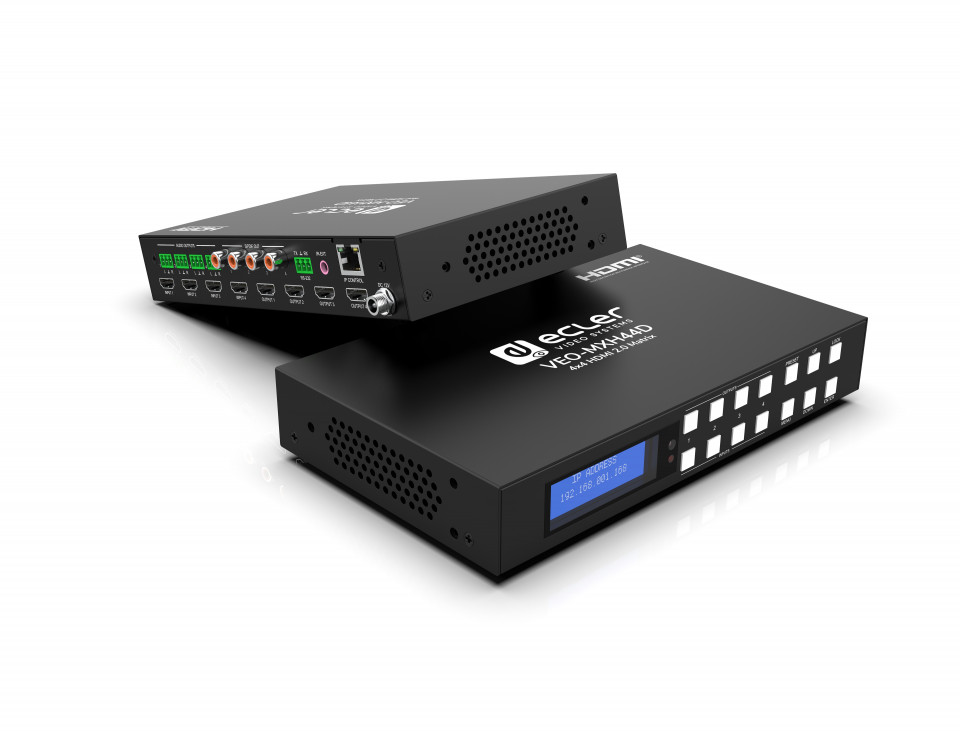

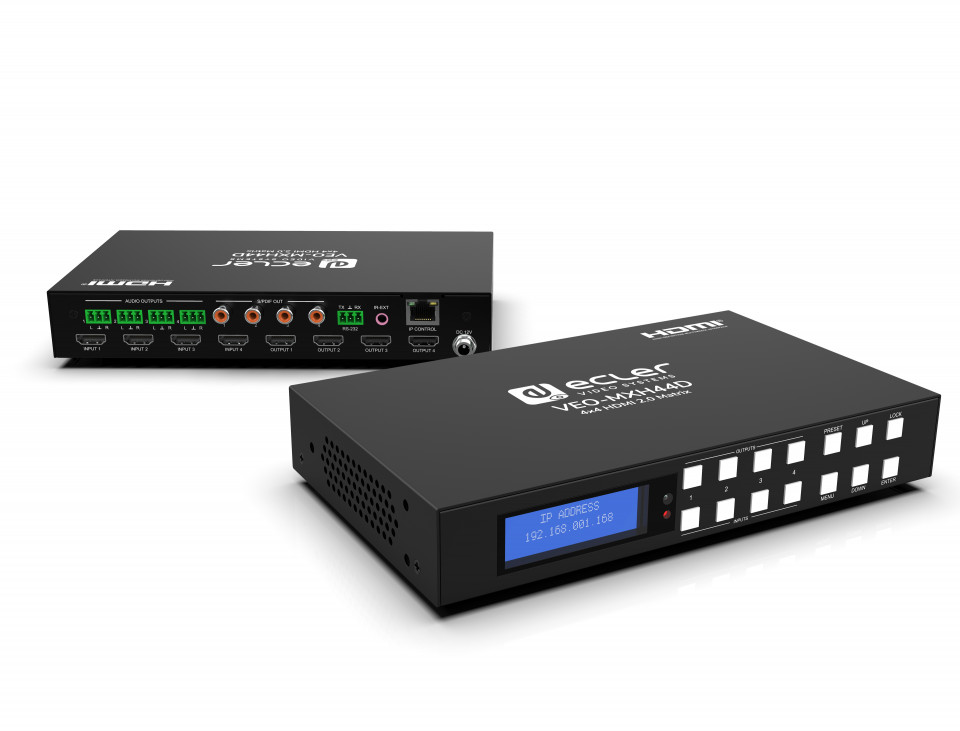

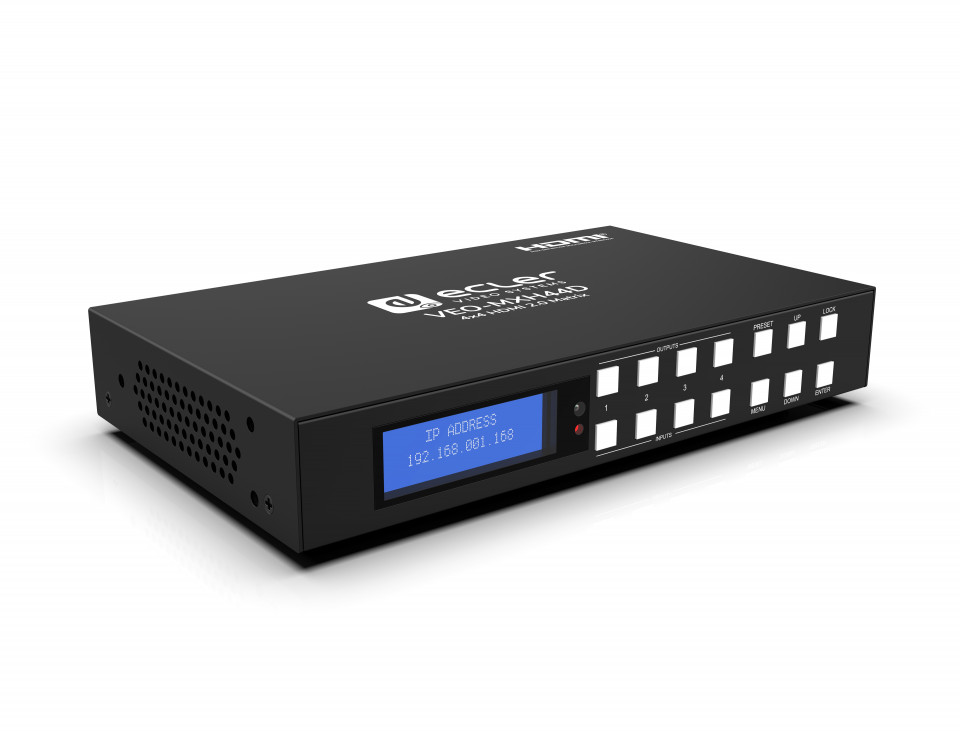

ECLER VEO-MXH44D Matrice video HDMI 4x4 cu extractoare audio si display

Descriere

Matrice video HDMI 4x4 pentru formate HDRcu extractoare audio si display

- compatibil HDCP 2.2 si 1.4

- suporta video 4K @60Hz, YUV 4:4:4 8-bit, HDR (at 4K @60Hz YUV 4:2:0 10-bit) si semnale HDMI 18 Gbps

- full HD video downscaling

- extractoare audio

- 8 preset-uri

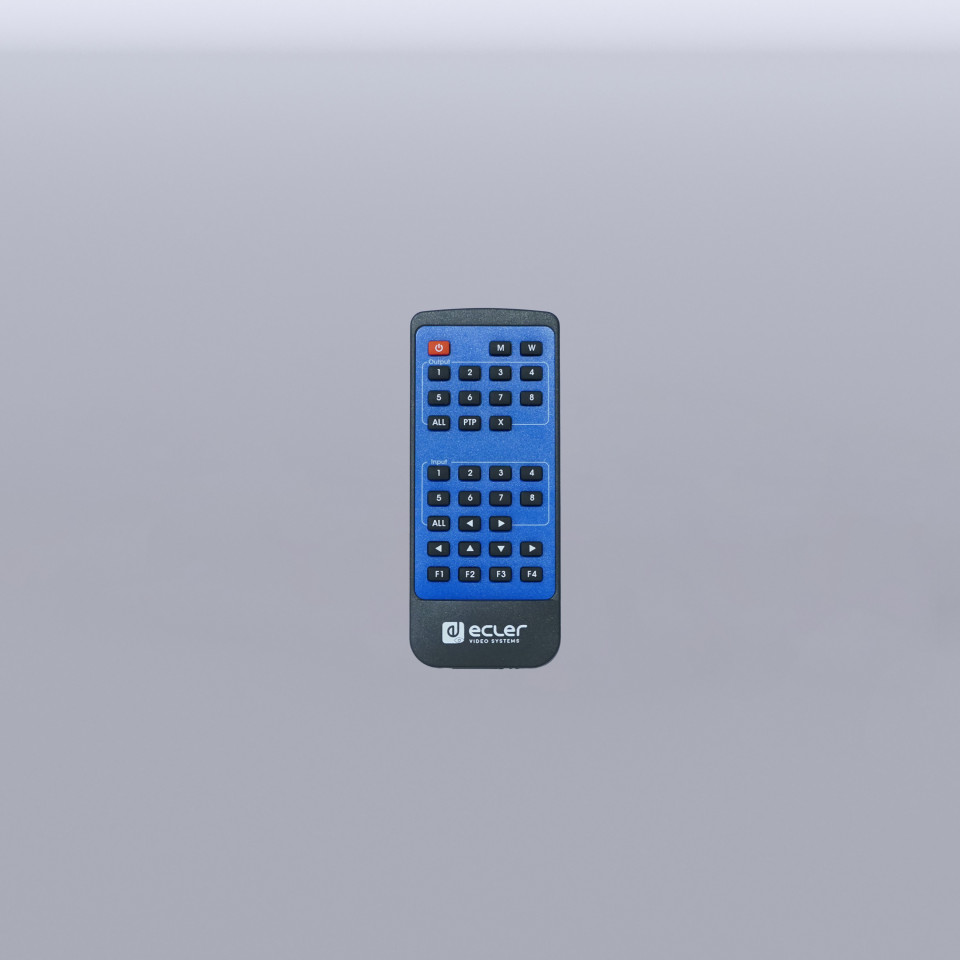

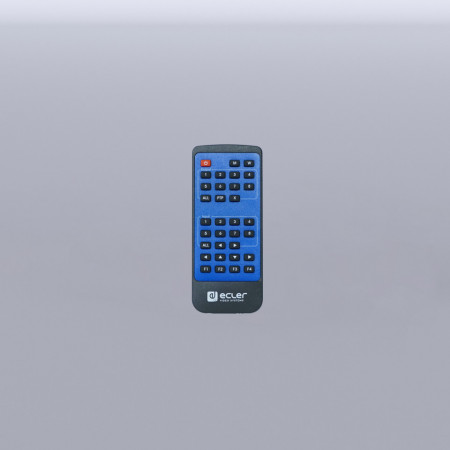

- control de pe panoul frontal, IR, RS-232, IP si interfata web

- suporta continut HDR

 - EDID management

- formate audio suportate: PCM2.0, PCM5.1, PCM7.1, Dolby Digital, DTS 5.1, Dolby Digital+ Dolby True HD, DTS-HD master audio, Dolby Atmos, DTS-X

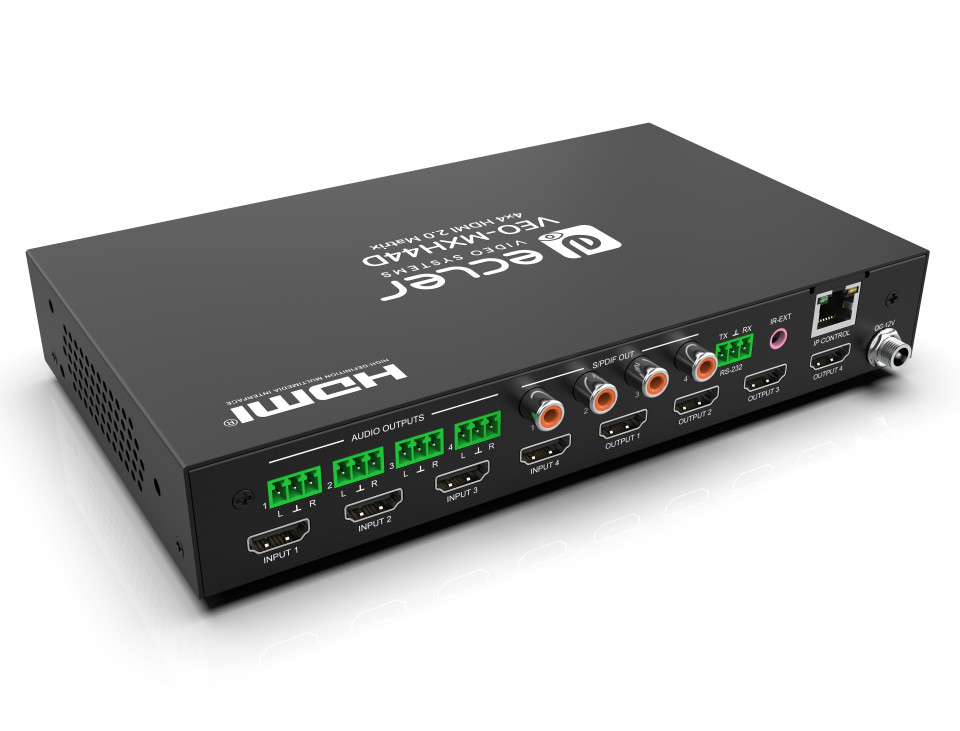

- intrari video: 4 x HDMI tip A (mama)

- iesiri video: 4 x HDMI tip A (mama)

- iesiri audio: 4 x euroblock (stereo nebalansat), 4 x S/PDIF (stereo)

- rezolutii suportate intrari: 480p@60hz, 576p@50hz, 720p@60hz, 1080p@24hz, 1080p@50hz, 1080p@60hz, 4K@24hz, 4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4

- rezolutii suportate iesiri: 480p@60hz, 576p@50hz, 720p@60hz, 1080p@24hz, 1080p@50hz, 1080p@60hz, 4K@24hz, 4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4

- control: 1 x IR (minijack 3.5mm), 1 x euroblock (RS232), 1 x RJ45 (Ethernet)

- alimentare: 100-240VAC 50-60Hz (12VDC-2A)

- dimensiuni: 217.4 x 35 x 128.7 mm

- greutate: 470 g
